Automatic Double Rockwell Machine
- Minimum Order Quantity
- 1 Set
- Price
- 12000-24000 USD ($)
- Price Range
- 12000.00 - 24000.00 USD ($)

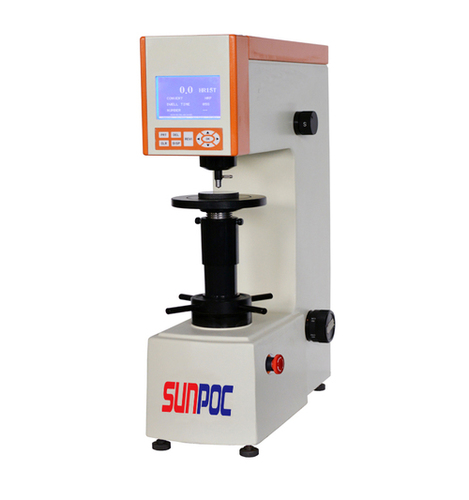

We are well known manufacturer and supplier in the market, providing an advance SHR-560Z Automatic Double Rockwell Machine to our customers. It is designed to support all superficial and rockwell scales This machine is designed under the strict quality control at all manufacturing stages. It is ideal for testing hardness of alloys and metals of all soft or hard, kinds, whether flat or round etc. or of irregular shape. It is known for its design to that of existing conventional Rockwell machine & easy to use still quite sensitive and accurate. Our SHR-560Z Automatic Double Rockwell Machine is known amidst customers for offering accurate results.
Key Features :-
- Perfect for all the rockwell and superficial rockwell scales.
- Support for conversion scales of various kind of hardness.
- Equipped with Touch screen display
- Press operation for test table , fast rising or dropping
- Data storage function
Technical Specification :-
|
Model |
SHR-560Z |
|
initial test force |
3kgf (29.42N), 10kgf (98.07N) |
|
total test force |
15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
|
indenter |
diamond rockwell indenter, ‘1.588mmball indenter |
|
loading method |
automatic (loading/dwell/unloading) |
|
automatic test table |
automatic rising and homing, one key to complete |
|
hardness reading |
touch screen |
|
test scale |
HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV (HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y) |
|
conversion scale |
HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HBW |
|
data output |
RS232 interface |
|
resolution |
0.1HR |
|
dwell time |
0~99s |
|
max. height of specimen |
320mm |
|
throat |
150mm |
|
power supply |
AC220V 50Hz |
|
dimension(LWH) |
machine: 535*330*890mm packing: 820*460*1170mm |
|
weight |
net weight: 80kg gross weight: 100kg |
Standard accessories:
|
No. |
Name |
Qty |
No. |
Name |
Qty |
|
1 |
instrument main body |
1 |
9 |
large plane test table |
1 |
|
2 |
1.588mmball indenter |
1 |
10 |
middle plane test table |
1 |
|
3 |
diamond rockwell indenter |
1 |
11 |
V-shaped test table |
1 |
|
4 |
hardness block 60~70 HRC |
1 |
12 |
anti-dust cover |
1 |
|
5 |
hardness block 80~100 HRB |
1 |
13 |
power cable |
1 |
|
6 |
hardness block 20~30 HRC |
1 |
14 |
fuse 2A |
2 |
|
7 |
hardness block 65~80 HR30N |
1 |
15 |
manual |
1 |
|
8 |
hardness block75~85 HR30T |
1 |
16 |
/ |
|
