Home » Products » Hardness Tester » Rockwell Hardness Testing Machine » Digital Double Rockwell Machine

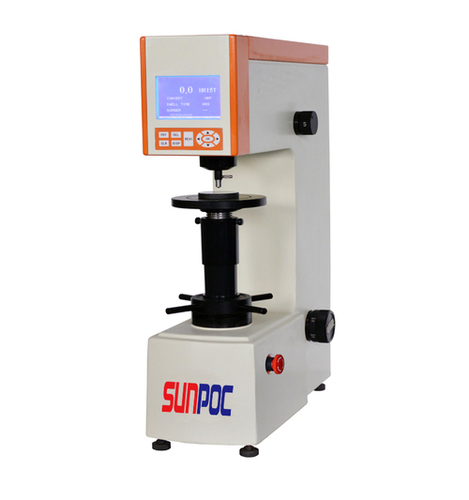

Digital Double Rockwell Machine

Digital Double Rockwell Machine
Digital Double Rockwell Machine
Send Inquiry
Product Code : SHR-560
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
Product Specifications
  • Number of Specimens
  • 1
  • Usage
  • Rockwell & Superficial Rockwell Hardness Testing
  • Machine Weight
  • 80 Kilograms (kg)
Product Description

 Digital Double Rockwell Hardness Tester

SHR-560 Digital Double Rockwell Machine for most exact test requirements in the workshops and laboratories etc. This machine is designed and developed for measuring hardness of metals and alloys of all types, flat, round, hard or soft, tubular or irregular in shape. We are appreciated for its high processing unit and compact design of machine. The SHR-560 Digital Double Rockwell Machine is simple in design, easy to operate, yet very accurate and reliable. Selection of all the Rockwell and superficial Rockwell scales; Conversion scales of different kinds of hardness; Test results can be saved and printed out, automatic calculation of maximum, minimum and average value; With RS232 interface for connecting to the computer.Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting etc.

Technical Specification :-

Model

SHR-560

initial test force

3kgf (29.42N),  10kgf (98.07N)

total test force

15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N),

60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)

indenter

diamond rockwell indenter,  Ã‘„1.588mmball indenter

loading method

automatic (loading/dwell/unloading)

hardness reading

lcd screen display

test scale

HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL,

HRM, HRP, HRR, HRS, HRV

HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W,

HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y

conversion scale

HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK,

HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW

data output

built-in printer,RS232 interface

resolution

0.1HR

dwell time

0~60s

height of specimen

175mm

throat

165mm

power supply

AC220V,50Hz

dimension(LWH)

machine :520×215×740mm,packing: 650×370×980mm

weight

net weight: 80kg,gross weight: 100kg

Standard accessories:

No.

Name

Qty

No.

Name

Qty

1

instrument main body

1

11

large plane test table

1

2

Ñ„1.588mmball indenter

1

12

middle plane test table

1

3

diamond rockwell indenter

1

13

V-shaped test table

1

4

hardness block 60~70 HRC

1

14

horizontal regulating screw

4

5

hardness block 80~100 HRB

1

15

screw driver

1

6

hardness block 20~30 HRC

1

16

spanner

1

7

hardness block 65~80 HR30N

1

17

power cable

1

8

hardness block75~85 HR30T

1

18

fuse 2A

2

9

level

1

19

weight 1, 2, 3, 4, 5

5

10

anti-dust cover

1

20

manual

1

Trade Information
  • FOB Port
  • Shanghai
  • Supply Ability
  • 1000 Per Year
  • Delivery Time
  • 15-20 Days
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Wooden Case
  • Main Export Market(s)
  • Africa, Central America, Australia, South America, Middle East, Western Europe, Eastern Europe, North America, Asia
  • Main Domestic Market
  • All India
  • Certifications
  • CE
