Digital Rockwell Hardness Tester Machine

Digital Rockwell Hardness Tester Machine
Digital Rockwell Hardness Tester Machine
Send Inquiry
Product Code : SHR-3000A
Brand Name : SUNPOC
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price Range
  • 1.00 - 10000.00 USD ($)
Product Specifications
  • Power Supply
  • 220V
  • Machine Weight
  • 90KG Kilograms (kg)
  • Test Width
  • 260mm in vertical, 150mm in horizontal Millimeter (mm)
  • Control Mode
  • automatically,Menu selectable, Membrane keypad
Product Description

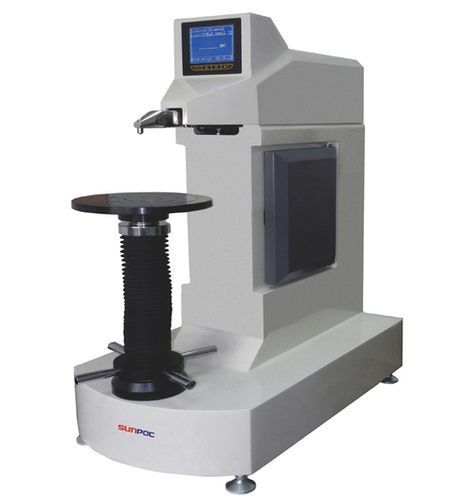

SHR-3000A Digital Rockwell Hardness Tester

Key features :-

  • Horizontal protrudent Indenter Design
  • Testing on Surfaces difficult to reach.
  • Can be used directly to measure Rockwell hardness for metal and plastic material
  • High measuring precision
  • Wide measuring range with 15 Rockwell scales
  • Tester is suitable for testing of carbon steel, alloy steel etc
  • Automatic load cycle
  • Measuring results digitally displaying and can be printed can be transfer to external computer or RS-232 data output port.
  • Test value can be transformed to the value of HB, HV, HLD, HK and value

Technical Specification :-

Model

SHR-3000A

Preload

10kgf (98.1N )

Total test force

60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)

Scales

HRA HRB HRC HRD HRE HRF, HRG HRH HRK HRL HRM HRP, HRR HRS HRV

Load dwell duration

2s-50s, can be set and stored

Resolution

0.1HR

Display

High definition backlight LCD

Operation

Menu selectable, Membrane keypad

Upper/lower limits

setting & alarming

Data statistics

Avg., Max., Min., S, R available

Curved surface correcting

automatically

Memory

Max 500 items of test results stored automatically

Data output

USB port to external PC, RS-232 to micro printer

Testing space

260mm in vertical, 150mm in horizontal

Dimensions

710mmx210mmx830mm

Power supply

AC, 220V/110V, 50,60Hz, 4A

Net weight

90kg



Standard configuration:

Optional Accessories:

Host machine

1

other Standard hardness block( made in China)

1

Standard hardness block for A scale

1

USA ASTM E18 Standard hardness block made in USA

1

Standard hardness block for B scale

1

230mm Flat table

1

Standard hardness block for C scale

1

150mm Flat table

1

ball indenter (1.5875mm)

1

Point type flat table

1

120°cone diamond indenter

1

( 12.7mm) ball press

1

Mounting screws for indenter

1

( 6.35mm) ball press

1

Flat anvil

1

( 3.175mm) ball press

1

shape anvil

1

Printer

1

Power supply wire

1

USB cable

1

Screwdriver for indenter mounting

1

PC

1

Dust cover

1

software

1

Trade Information
  • FOB Port
  • Shanghai
  • Payment Terms
  • Telegraphic Transfer (T/T)
  • Supply Ability
  • 100 Per Week
  • Delivery Time
  • 15days Days
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Main Export Market(s)
  • Middle East, Western Europe, Eastern Europe, North America, Asia
  • Main Domestic Market
  • All India
  • Certifications
  • CE
