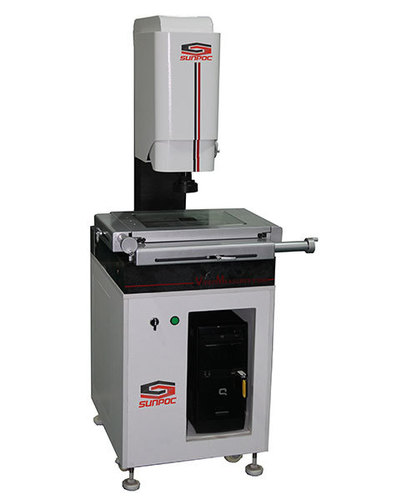

E200 Manual Video Measuring Machine

E200 Manual Video Measuring Machine
E200 Manual Video Measuring Machine
Send Inquiry
Product Code : E200
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price
  • 12000 USD ($)
  • Price Range
Product Description



Specification:

Model E200 E300 E400
Measuring range(mm) 200x100x200 300x200x200 400x300x200
Dimensions(mm) 750*1300*1500mm 750*1300*1500mm 900*1400*1500mm
Weight(kg) 160 170 250
Max. load(kg) 20 25 25



Details:

  • Accuracy of X-Y axis (μm): 3+L/200
  • Repeatability(mm):0.003
  • Measuring mode:video measurement
  • Linear encoder: exposed glass linear encoder with resolution of 1.0μm
  • Camera type: SBK-HC536 1/3 inches 600 lines industrial color camera
  • Guideway: Z axis:“HIWIN” P level linear guide way
  • X-Y axis:cross roller guide way
  • Optics: 6.5:1 continual zoom detent body tube
  • Magnification: optics zoom ratio: 0.7-4.5X; image zoom ratio: 24-158X
  • Software: SBK-E 2D measuring software
  • Profile illumination: LED cold lighting with 256 level programmable brightness adjustment
  • Surface illumination: 48 LEDs cold lighting with 256 level programmable brightness adjustment
  • Control system: SBK-3000 data controller、USB interface、software controlled lighting
  • Drive type: Manual
Trade Information
  • FOB Port
  • Shanghai
  • Payment Terms
  • Telegraphic Transfer (T/T)
  • Certifications
  • CE
