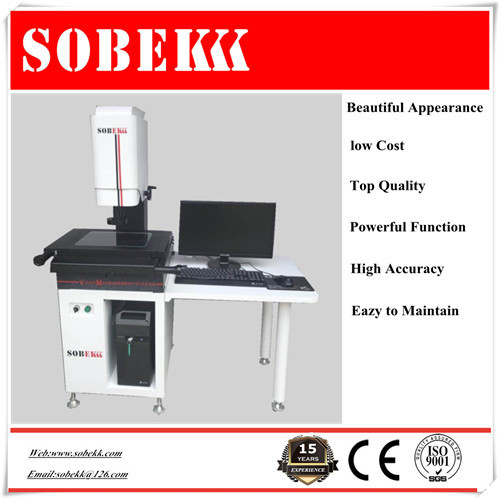

E200 Video Measuring Machine

E200 Video Measuring Machine
E200 Video Measuring Machine
Product Code : E200
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
Product Description

Catering to wide requirements of clients, this E200 Video Measuring Machine is procured from the trusted expert present in market. This is accessible for customers in a wide range of models and specifications to cater to their demands. Highly demanded among the patrons, this array is utilized as non-contact optical measuring instrument. E200 video measuring machine is specifically designed for accurate measurement and high-speed of small to large work pieces.

Key Features :-

  • HIWIN P level linear guideway and precision cross roller guideway for increased accuracy & working life
  • Contains granite base and column ensures machine stability.
  • Supplied with SBK-E multifunctional 2.5D measuring software, automatic edge detection and video height measurement
  • Supplied with removable & dismountable console base
  • High-definition detent zoom lens and high-resolution CCD performs high-definition measurement.
  • Supports different file formats of data output such as Word, Excel, CAD etc.
  • DXF import for quick inspection.

Technical Specifications:

Model

E200

E300

E400

Measuring range(mm)

200x100x200

300x200x200

400x300x200

Dimensions(mm)

750*1300*1500mm

750*1300*1500mm

900*1400*1500mm

Weight(kg)

160

170

250

Max. load(kg)

20

25

25

  • Accuracy of X-Y axis ( ¼m): 3+L/200
  • Repeatability ¼ mm ¼ 0.003
  • Measuring mode video measurement
  • Linear encoder: exposed glass linear encoder with resolution of 1.0¼m
  • Camera type: SBK-HC536 1/3 inches 600 lines industrial color camera
  • Guideway: Z axis “HIWIN P level linear guide way
  • X-Y axis ¼ cross roller guide way
  • Optics: 6.5:1 continual zoom detent body tube
  • Magnification: optics zoom ratio: 0.7-4.5X; image zoom ratio: 24-158X
  • Software: SBK-E 2D measuring software
  • Profile illumination: LED cold lighting with 256 level programmable brightness adjustment
  • Surface illumination: 48 LEDs cold lighting with 256 level programmable brightness adjustment
  • Control system: SBK-3000 data controller USB interface software controlled lighting
  • Drive type: Manual
Trade Information
  • Payment Terms
  • Telegraphic Transfer (T/T)
  • Main Export Market(s)
  • Western Europe, Eastern Europe, North America, Central America, Asia
  • Certifications
  • CE
