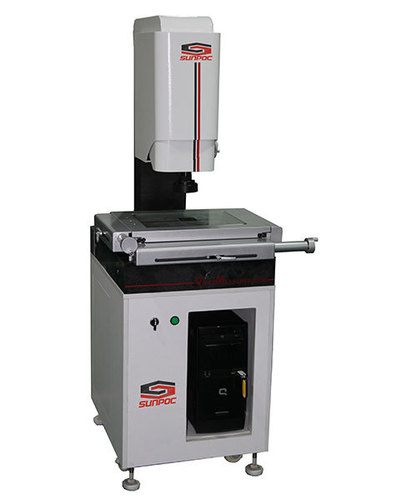

E300 Video Measuring Machine

E300 Video Measuring Machine
E300 Video Measuring Machine
Send Inquiry
Product Code : E300
Brand Name : SUNPOC
Product Specifications
  • Usage
  • test
  • Machine Weight
  • G.W. 325 Kilograms (kg)
  • Dimensions
  • 1.45*0.95*1.15 Meter (m)
Product Description

Specifications:

Model

E200

E300

E400

Measuring range(mm)

200x100x200

300x200x200

400x300x200

Dimensions(mm)

750*1300*1500mm

750*1300*1500mm

900*1400*1500mm

Weight(kg)

160

170

250

Max. load(kg)

20

25

25



Accuracy of X-Y axis (μm): 3+L/200

Repeatability(mm):0.003

Measuring mode:video measurement

Linear encoder: exposed glass linear encoder with resolution of 1.0μm

Camera type: SBK-HC536 1/3 inches 600 lines industrial color camera

Guideway: Z axis:“HIWIN” P level linear guide way

X-Y axis:cross roller guide way

Optics: 6.5:1 continual zoom detent body tube

Magnification: optics zoom ratio: 0.7-4.5; image zoom ratio: 24-158

Software: SBK-E 2D measuring software

Profile illumination: LED cold lighting with 256 level programmable brightness adjustment

Surface illumination: 48 LEDs cold lighting with 256 level programmable brightness adjustment

Control system: SBK-3000 data controller、USB interface、software controlled lighting

Drive type: Manual



Trade Information
  • FOB Port
  • Shanghai China
  • Payment Terms
  • Telegraphic Transfer (T/T)
  • Supply Ability
  • 100 Per Week
  • Delivery Time
  • 10 Days
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
  • Certifications
  • CE
