Home » Products » Hardness Tester » Brinell Hardness Testing Machine » Electronic Brinell Hardness Machine

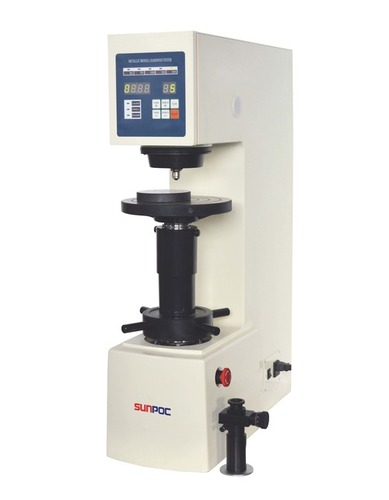

Electronic Brinell Hardness Machine

Electronic Brinell Hardness Machine
Electronic Brinell Hardness Machine
Send Inquiry
Product Code : SHB-3000D
Brand Name : SUNPOC
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price
  • 5000-1000 USD ($)
Product Specifications
  • Specimen Size
  • 220 Millimeter (mm)
  • Dimensions
  • 0.6 x 0.24 x 0.8 Millimeter (mm)
  • Number of Specimens
  • 1
  • Power Supply
  • AC220V /50Hz
  • Test Range
  • 62.5kgf-3000kgf
  • Usage
  • hardness test for metal
  • Capacity
  • 0.3-50 Cubic Meter (m3)
  • Machine Weight
  • 80-100 Kilograms (kg)
  • Power
  • AC220V Volt/Ohm (v/ohm)
  • Test Width
  • 135 Millimeter (mm)
  • Test Stroke
  • 135mm
  • Control Mode
  • Load Cell
Product Description

Known as a famous manufacturer and supplier of hardness testers, now providing a wide range of Electronic Brinell Hardness Machine to our valued clients. It is made with high grade metals and these metals are sourced from the reliable vendors in the market. this machine has precise mechanical structure and load cell system. This Electronic Brinell Hardness Machine is ideal for iron steel, steel products and soft allot . It is well tested by our experts who are totally experienced in this field. Our company provide quality products in affordable rates.

Key Features :-

  • It has precise mechanical structure and load cell control system
  • Instrument adopts the motorized test force application without weights
  • Uses 0.5° accuracy compression sensor to feedback
  • Equipped with V1.0 Brinell image automatic measuring system
  • Suitable for cast iron, steel products, non-ferrous metals and soft alloys etc
  • CPU control system

Technical Specification :-

Model

SHB-3000D

Test force

kgf

62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf

N

612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N

Test range

3.18ï½Å¾653HBW

Hardness reading

check hardness table

Microscope

20× reading microscope

Reading resolutiion

5μm

Dwell time

0~60s

Max. Height of Specimen

220mm

Throat

135mm

Power supply

AC220Vï¼Å’50Hz

Dimension

Machine size 545×235×755mmï¼Å’packing size: 650×435×1025mm

Weight

Net Weight: 130kgï¼Å’Gross Weight: 160kg

Standard accessories:

No.

Name

Qty

No.

Name

Qty

1

instrument main body

1

8

20× reading microscope

1

2

Ф2.5mm, Ф5mm, Ф10mm  Ball Indenter

3

9

large plane test table

1

3

small plane test table

1

10

v-shaped test table

1

4

hardness block 150~250 HBW 10/3000

1

11

hardness block 150~250 HBW 5/750

1

5

fuse 2A

2

12

power cable

1

6

anti-dust cover

1

13

brinell hardness table

1

7

manual

1







Trade Information
  • FOB Port
  • Shanghai
  • Supply Ability
  • 5000 Per Year
  • Delivery Time
  • 15-20 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Wooden Case
  • Main Domestic Market
  • All India
  • Certifications
  • CE
