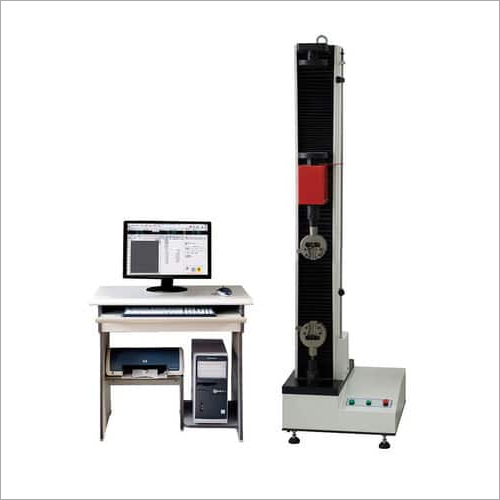

Electronic Universal Testing Machine (LED)

Electronic Universal Testing Machine (LED)
Electronic Universal Testing Machine (LED)
Send Inquiry
Product Code : WDW-5D
Brand Name : SUNPOC
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price Range
  • - 10000 USD ($)
Product Specifications
  • Power Supply
  • 0.5kW/220V
  • Number of Specimens
  • 1
  • Usage
  • Tensile Test; Compression Test
  • Machine Weight
  • 110 Kilograms (kg)
  • Test Speed
  • 0.05-500 mm/min
  • Test Width
  • 400 Millimeter (mm)
Product Description

With the excellent knowledge about the market, our organization is considered as the profound manufacturer and supplier of Electronic Universal Testing Machine (LED). It is made in accordance with the latest technology, by using premium quality raw materials and components. It is perfect to test strength, consistent speed & load, displacement and elongation. In order to provide a flawless range to the clients, we check the Universal Testing Machine on certain quality parameters.

Key Features :-

  • Perfect design to enlarge the data acquisition and control systems
  • Test power amplification
  • A/D conversion process of implementation of the double control and display of all digital adjustment
  • Mainly used in aerospace, petrochemical, machinery manufacturing, cables, textiles, fibers, plastics, electric wires, rubber etc
  • Machine is made under the different standards like GB, JIS, ASTM, DIN, ISO standards which provides fracture strength, yield strength, upper &lower yield strength, tensile strength, compressive strength etc.
  • Adopts the chip integrated advanced technology
  • Demarcate automatically the system can realize the demarcate of indication accuracy
  • Using direct servo motar as main power source
  • Process realize:  testing progress, measurement display etc as per SCM
  • Limit protection: have progress control and machinery protection
  • Overload protection: stop automatically when exceed 3%-5% of grads max.

Technical Specification :-

Model

WDW-1D

WDW-2D

WDW-5D

WDW-1L

WDW-2L

WDW-5L

max testing force

1kN

2kN

5kN

test grade

1

1

1

testing force accuracy

±1%

±1%

±1%

testing force  range

1%-100%Fn

1%-100%Fn

1%-100%Fn

force resolution

0.1N

0.1N

0.1N

displacement  accuracy

±0.5%

±0.5%

±0.5%

displacement resolution

0.002mm

0.002mm

0.002mm

speed range (mm/min)

range:0.05ï½Å¾500

range:0.05ï½Å¾500

range:0.05ï½Å¾500

control accuracy

 Ãƒ‚±1%

 Ãƒ‚±1%

 Ãƒ‚±1%

crosshead move range

1000

1000

1000

pull space

800

800

800

push space

800

800

800

wedge grip body

one suit

one suit

one suit

diameter of pressure plate

Ф80 x1

Ф80 x1

Ф80 x1

large deformation Extensometer

0-800mm(optional)

0-800mm(optional)

0-800mm(optional)

motor

Step motor

Step motor

Step motor

power supply

0.2kW 220V

0.2kW 220V

0.2kW 220V

machine dimension

380×230×1550mm

380×230×1550mm

380×230×1550mm

weight

100Kg

100Kg

100Kg

Trade Information
  • Payment Terms
  • Telegraphic Transfer (T/T)
  • Supply Ability
  • 1000 Per Year
  • Delivery Time
  • 15-20 Days
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Wooden Case (fumigation-free)
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
  • Certifications
  • CE
