Hardness Tester

Hardness Tester
Send Inquiry
Product Code : SMV-1000MZ
Brand Name : SUNPOC
Price And Quantity
  • Minimum Order Quantity
  • 1 Set
  • Price
  • 5700-11400 USD ($)
  • Price Range
  • 5700.00 - 11400.00 USD ($)
Product Specifications
  • Test Range
  • 1HV~2967HV
  • Machine Weight
  • 31 Kilograms (kg)
  • Test Stroke
  • 25*25mm
Product Description

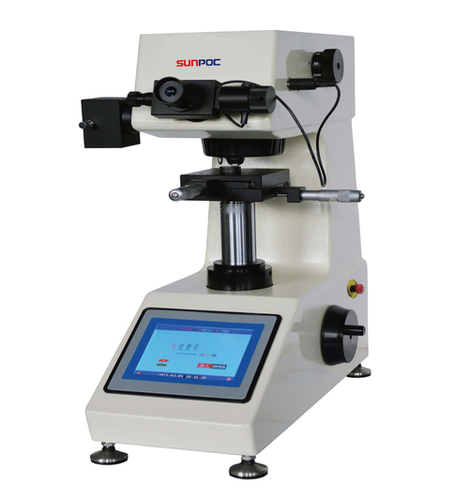

SMV-1000MZ  Digital Micro Vickers Hardness Tester

Feature:

The digital micro vickers hardness tester adopts unique precision design of optics, mechanic and electrics features, make the indentation image clearer, and get more precise measurements. With digital measuring eyepiece, no need for checking the table or inputting the diagonal of the indentation, it can directly shows the test mode, test force, indentation length, dwell time, test numbers, conversion scale, date and time. As long as press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and show on the large screen. Test results can be saved for checking or be printed out by the built-in printer, and with RS232 interface for connecting to the computer. It can use optional Knoop indenter to measure Knoop hardness and be equipped with 2kg test force. Also it can be equipped with LCD video measuring device and CCD image automatic measuring system.

Standard: ISO 6507,ASTM E384,JIS Z2244,GB/T 4340.2

Application: Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.



Trade Information
  • FOB Port
  • SHANGHAI CHINA
  • Payment Terms
  • Telegraphic Transfer (T/T)
  • Supply Ability
  • 1000 Set Per Week
  • Delivery Time
  • 15 Days
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Machine 1 Set Micro Vickers Indenter (Diamond) 1 PC Weights 6 PCS Weight Axis 1 PC X-Y Stage 1 PC Filament Stage 1 PC Thin Specimen Stage 1 PC Plain Clamping 1 PC Hardness Block 400~500 HV0.2 1 PC Hardness Block 700~800 HV1 1 PC
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
  • Certifications
  • CE
