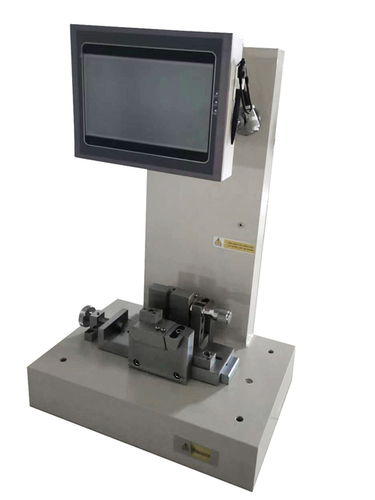

Izod & Charpy Impact Tester

Izod & Charpy Impact Tester
Izod & Charpy Impact Tester
Product Code : JBIC-5D
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
Product Description

Impact Tester ( Izod & Charpy)

Key Features :-

  • Used for test or determine the anti impact capacity of non - metal materials such as hard plastic , nylon , ceramic toughened glass , pottery , cast stone etc.
  • Widely used in non-metallic material manufacturer , laboratories and scientific research institute etc.
  • Machine is developed under standards ENISO179, ENISO180,ISO9854, DIN53453, ASTMD256
  • It can be connected through PC

Technical Specification :-

  • Energy: Charpy  1J, 2J, 4J, 5J, 7.5J, 15J, 25J, Izod  1J, 2.75J, 5.5J, 11J, 22J
  • Impact Speed: Charpy  2.9m/s  3.8m/s Izod  3.5m/s
  • Support: Charpy  40mm   60mm   70mm  95mm Izod  22mm
  • Size (L×W×H): 500mm×350mm×780mm
  • Weight: 130kg
  • Power Supply: AC220±10V   50HZ
  • Working Condition: 20±5℃, RH≦80%

Model

Energy

Speed

Display

control

JBIC -5

Charpy:  1J/ 2J /4J /5J

Charpy:  2.9m/s

Dial Display

Manual

Izod:  1J/ 2.75J

Izod:  3.5m/s

JBIC -5D

Charpy: 1J /2J /4J/ 5J

Charpy:   2.9m/s

digital DRO (LCD)

Auto

Izod: 1J /2.75J

Izod:  3.5m/s

JBIC -25

Charpy: 7.5J/ 15J/ 25J

Charpy:   3.8m/s

Dial Display

Manual

Izod: 5.5J/ 11J/ 22J

Izod: 3.5m/s

JBIC -25D

Charpy: 7.5J/ 15J /25J

Charpy:  3.8m/s

digital DRO (LCD)

Auto

Izod: 5.5J /11J/ 22J

Izod: 3.5m/s

JBIC-5D and JBIC25D can option software and PC.

Trade Information
  • Payment Terms
  • Telegraphic Transfer (T/T)
  • Main Export Market(s)
  • Middle East, Western Europe, Eastern Europe, North America, Asia
  • Certifications
  • CE
