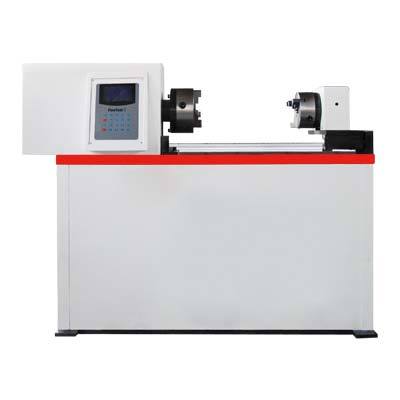

NJS Torsion Testing Machine

<<Previous

Send Inquiry

Product Code : NJS-05

Price And Quantity

Minimum Order Quantity
1
Unit of Measure
Set/Sets

Product Description

NJS-05 Digital Torsion Tester is given by us for easy testing and analysis of Torsion springs. Available at cost effective prices, this tester is low on maintenance and is accessible in a wide range. The tester is hand operated and machine comes with a digital display of angle and torque. Offered NJS-05 digital torsion tester is highly demanded for accurate measurements, comparisons and inspections of precision molds, components and various other objects.

Key Features :-

Servo control system
Used in machinery manufacturing , inspection arbitration , technical supervision departments etc.
Have auto loading , high precision torque sensors , rotational angle , liquid crystal display test results.
Simple in structure, easy to operate and low in price
Used to determine material torque , maximum torque and the reverse indicator
High reliability.
Good control on power control and data processing capability

Technical Specification :-

Model	NJS-05	NJS-10	NJS-20	NJS-50
Max Test Torque	500Nm	1000Nm	2000Nm	5000Nm
Torque display value (Nm)	10-500	20-1000	40-2000	100-5000
Min. reading of test torque	0.1Nm
Relative Error of Torque Display-value	±1%
Repetitive Error of Torque Display-value	±1%
Max. reading of torsion angle	0 ~ 9999.9°
Min. reading of torsion angle	0.01
Relative Error of Torsional Angle	±1%
Max. distance between torsion clamp	0-500mm
Power supply	220V±10%，50Hz
Machine over size(mm)	1470550970			16505501100
Weight	700kg		1000kgs	1200kgs
