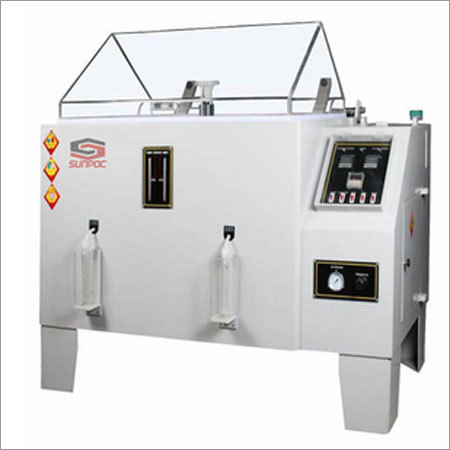

Salt Spray Tester

Salt Spray Tester
Salt Spray Tester
Product Code : SP-HL-90
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
Product Description

The Salt Spray Tester is used to test the anti-erosion quality of the surface of all materials after the rustproof of coating, painting, anodizing and electroplating and rust -proof of greasing. To test the mechanical operations of all the parts and corrosion resistance of the fully charged and assembled extinguisher against weather conditions. This tester finds application in production site, workshop and laboratory in factory. Furthermore, this salt spray tester can get from us in different technical specifications to our clients.Widely used to test corrosion resistance of automotive, paint, surface coating, chemical, aerospace, electronic etc.

Technical Specification :-

Standard

  • DIN 50021: Salt spray testing
  • JIS Z2371 Methods of Salt Spray Testing
  • SGM-GM4465P Water Fog Humidity Test
  • ASTM B117 Standard Practice for Operating Salt Spray Apparatus
  • ASTM D1735-99 Standard Practice for Testing Water Resistance of Coatings Using Water Fog Apparatus
  • ASTM G85 - 11 Standard Practice for Modified Salt Spray (Fog) Testing
  • ISO7253:2001 Paints and varnishes – Determination of resistance to neutral salt spray (fog)
  • ISO9227-2012 Corrosion tests in artificial atmospheres – salt spray tests
  • ASTM B368-97 Standard Method for Copper-Accelerated Acetic Acid-Salt Spray (Fog) Testing (CASS Test)
  • ASTM B380-97(2007) Standard Test Method of Corrosion Testing of Decorative Electrodeposited Coatings by the Corrodkote Procedure.

NSS serial:

  • can option LED touch screen.
  • Machine adopts P.V.C material, corrosion resistance, easy to clean, no leakage phenomenon.
  • Have button type intelligent temperature control instrument, multiple sets of PID automatic routing,
  • High control precision, instrument can also be equipped with LCD touch screen.
  • 108 l, 270 l testing machine cover adopts acrylic transparent roof, more than 480 l model adopts hard P.V.C plastic board, cover automatically opened and closed by cylinder, enclose the window light, may at any time to monitor the spray state machine and working state of the sample.
  • Tower spray system and device have salt liquid filter, no crystallization nozzle, spray uniform distribution, settlement free adjustment.
  • Sample number was laid (150 * 70 mm), such as 48 pieces can be placed in a 15 degree Angle, such as 32 can be placed in 30 degrees.
  • After completion of the experiment, with automatic mist device, the sample (s) can be observed clearly.
  • Clearance or continuous spray optional, multiple protection system, the use of safe and reliable.

CASS serial:

  • Machine adopts imported PVC&PP hard plastic, solid structure,acid and alkali endurable, high temperature corrosion, never aging. Suitable for neutral salt fog NSS, acetic acid test along, copper acetate CASS and other experimental requirements.
  • Use plastic precision nozzle and conical spray, mist evenly fast, nozzle long service life, no crystallization.
  • Using LED LCD touch screen, can connect with computer to realize remote monitoring and operation, can be arbitrary switching in both Chinese and English.
  • With USB interface, can insert U disk to download historical data (the alternative recorder.
  • Internal control, spray time without additional time relay.
  • Through the flow meter, high pressure valve to regulate brine flow and pressure of compressed air, to ensure uniform settlement of salt fog.
  • Use the manual water system, water shortage with the function of automatically added, ensure continuity of test.

Specification list:

Model

NSS

SP-HL-90

SP-HL-120

SP-HL-160

SP-HL-200

CASS

SP-AHL-90

SP-AHL-120

SP-AHL-160

SP-AHL-200

CCT

SP-AHL-90

SP-AHL-120

SP-AHL-160

SP-AHL-200

Interior dimensions (mm)

W

900

1200

1600

2000

D

600

850

1000

1200

H

500

600

600

600

Exterior dimensions (mm)

W

1460

1900

2600

3000

D

910

1150

1450

1650

H

1280

1500

1550

1600

Chamber Tank

270

480

800

1440

Solution Tank

50 L

90

90

120

Testing Temperature

NSS ACSS 35℃±1℃ / CASS 50℃±1℃

Air Temperature

NSS ACSS 47℃±1℃ / CASS 63℃±1℃

Solution Consistence

NaCl 5%

PH Value

NSS (Nacl) : 6.5~7.2 / CASS(Cu / CH COOH ): 3.0~3.2

Temperature fluctuation

± 0.5℃

Temperature uniformity

≦2. 0℃

Temperature Resolution

0.1℃

Spray quantum

1.0~2.0(ml/80cm2/h)

Chamber Material

polyvinyl chloride (P.V.C & P.P)

Heater

Corrosion-resistant titanium tube

Temperature sensor

Platinum Resistance (PT-100)

Safety device

Over-temperature protection , leakage protection

Ambient temp. & humid. range

+5℃ ~ +35℃ / <85%RH

Power Supply

AC 220V/50HZ/1P AC 380V/50HZ/3P

Trade Information
  • FOB Port
  • Shanghai
  • Payment Terms
  • Telegraphic Transfer (T/T)
  • Main Export Market(s)
  • Middle East, Western Europe, Eastern Europe, North America, Asia
  • Certifications
  • CE
