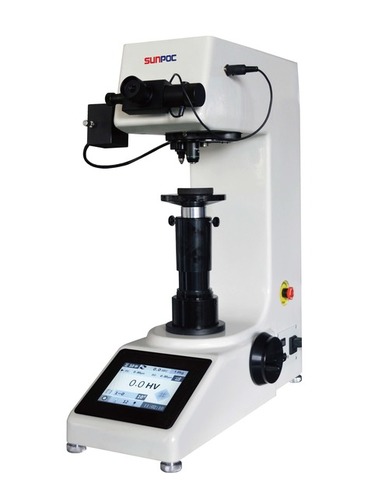

SHV-500M Vickers Hardness Tester

SHV-500M Vickers Hardness Tester
SHV-500M Vickers Hardness Tester
Product Code : SHV-500M
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
Product Description

Vickers Hardness Tester
Technical Specification
:-

Model

SHV-500M

SHV-1000M

SHV-3000M

SHS-5000M

SHV-500MZ

SHV-1000MZ

SHV-3000MZ

SHV-5000MZ

testing force

1.961N (0.2kg)

2.942N (0.3kg)

4.903N (0.5kg)

9.807N (1kg)

19.61N (2kg)

24.52N (2.5kg)

29.42N (3kg)

49.03N (5kg)

2.942N (0.3kg)

4.903N (0.5kg)

9.807N (1kg)

19.61N (2kg)

24.52N (2.5kg)

29.42N (3kg)

49.03N (5kg)

98.07N (10kg)

4.903N (0.5kg)

9.807N (1kg)

19.61N (2kg)

24.52N (2.5kg)

29.42N (3kg)

49.03N (5kg)

98.07N (10kg)

196.1N (20kg)

294.2N (30kg)

9.807N (1kg)

19.61N (2kg)

24.52N (2.5kg)

29.42N (3kg)

49.03N (5kg)

98.07N (10kg)

196.1N (20kg)

294.2N (30kg)

490.3N (50kg)

 objective

20x, 40x

10x, 40x

10x, 20x

10x, 20x

magnifying

200×/400×

100×/400×

100×/200×

100×/200×

resolution

0.125 μm, 0.0625μm

0.25μm , 0.0625μm

0.25μm , 0.125 μm

0.25μm , 0.125 μm

test table

100×100 cross table: range 25×25/0.01mm

big plane test table and V table

conversion scale

HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N,

HR45N, HR15T, HR30T, HR45T, HS, HB

max. height

170mm

instrument throat

130mm

eyepiece

10x digital eyepiece

testing range

1hv-2967HV

objective/indenter switch

SHV-M manual switch of objective and indenter

SHV-MZ  is automatic ( auto-turret)

printer

Built in printer, RS232

loading control

automatic ( loading / dwell / unloading )

dwell time

560s

power supply

AC220V/50HZ; AC110V/60HZ

dimension(LWH)

machine size 530×280×630mm, packing 620x450x740mm

weight

net weight: 35kggross weight: 47kg

Standard accessories:

No.

Name

Qty

No.

Name

Qty

1

instrument main body

1

13

objective

2

2

diamond vickers indenter

1

14

cross test table for SHV-500M/MZ, SHV-1000M/MZ

1

3

10× digital measuring eyepiece

1

15

big plane test table

1

4

halogen lamp 12V, 15~20W

1

16

V-shaped test table

1

5

fuse 1A

2

17

SHV-500M/MZ

hardness block 700~800 HV1

1

6

inner hexagon spanner 2.5mm

1

18

hardness block 400~500 HV5

1

7

horizontal regulating screw

4

19

SHV-1000M/MZ

hardness block 700~800 HV1

1

8

screw driver

1

20

hardness block 700~800 HV10

1

9

anti-dust cover

1

21

SHV-3000M/MZ

hardness block 700~800 HV30

1

10

power cable

1

22

hardness block 400~500 HV5

1

11

level

1

23

SHV-5000M/MZ

hardness block 700~800 HV30

1

12

manual

1

24

hardness block 400~500 HV5

1

Trade Information
  • FOB Port
  • Shanghai
  • Payment Terms
  • Telegraphic Transfer (T/T)
  • Main Export Market(s)
  • Middle East, Western Europe, Eastern Europe, North America, Asia
  • Certifications
  • CE
