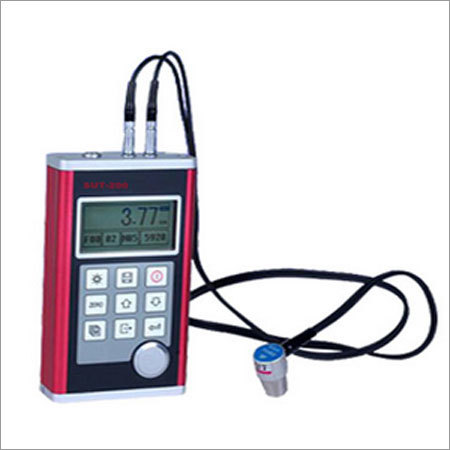

SUT- 200 Ultrasonic Thickness Gauge

SUT- 200 Ultrasonic Thickness Gauge
SUT- 200 Ultrasonic Thickness Gauge
Product Code : SUT- 200
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
Product Description

Offered SUT- 200 Ultrasonic Thickness Gauge is utilized to measure the thickness of metallic and non-metallic material like titanium, aluminum, plastic, glass, ceramic, plastic, etc. Ultrasonic thickness gauge offered by us is widely accredited in the market for its magnificent attributes such as anti-corrosive nature, smooth finish, easy maintenance and lightweight. This SUT- 200 Ultrasonic Thickness Gauge is widely demanded by our customers for their excellent performance and accurate readings.

Features:

  • Can perform the measurements on a wide range of material.
  • Four transducer models.
  • Probe-Zero function, Sound-Velocity-Calibration function.
  • Two-Point Calibration function.
  • Two work modes: Single point mode and Scan mode.
  • Available with Coupling status indicator
  • Auto sleep and auto power off function
  • Option software to process the memory data on the PC.
  • Option mini-printer to print the measured data via RS232 port

Specification list:

Display

128×64 dot matrix LCD with EL backlight.

Measuring Range

0.75300mm (in Steel).

SoundVelocity Range:

1000~9999 m/s.

Resolution

0.1/0.01mmselectable.

Accuracy

 ±0.5%Thickness+0.04mm

Units:

 Metric/English unit selectable.

measuring circle

Four measurements readings per second for single point measurement, and ten per second for Scan Mode.

Memory

Memory for 20 files (up to 99 values for each file) of stored values.

Alarm function:

Upper and lower limit can be pre-set. It will alarm automatically when the result value exceeding the limit.

Power Supply

Two “AA” size, 1.5 volt alkaline batteries. 100 hours typical operating time (EL backlight off).

Communication

RS232 serial port.

Case

Extruded aluminum body suitable for use under poor working conditions.

Outline dimensions

132×76×40 mm.

Weight

345g

Packing list:



Item

Quantity

Note

 Standard Configuration

Main body SUT-200

1



Transducer

1



Couplant Bottle

1



Instrument Case

1



Screwdriver

1



Alkaline battery

2

 AA size

Operating Manual

1



 Warranty Card

1



Optional Configuration

Transducer: N02





Transducer: N07



Transducer: HT5



Mini printer

1



Print cable

1



DataPro for Thickness Gauge

1

For use on the PC

Communication Cable

1




Trade Information
  • FOB Port
  • Shanghai
  • Payment Terms
  • Telegraphic Transfer (T/T)
  • Main Export Market(s)
  • Middle East, Western Europe, Eastern Europe, North America, Asia
  • Certifications
  • CE
