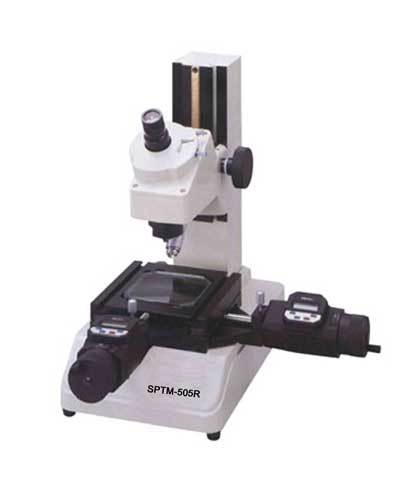

Tool-Maker Microscope

Tool-Maker Microscope
Tool-Maker Microscope
Send Inquiry
Product Code : SPTM-505R
Brand Name : SUNPOC
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price
  • Price Range
  • 1.00 - 10000.00 USD ($)
Product Specifications
  • Theory
  • Video Microscope
  • Drawtube
  • Monocular
  • Resolution
  • 0.001mm
  • Colors
  • White
  • Magnification
  • 30X
  • Dimensions
  • 210*333*391mm Millimeter (mm)
  • Weight
  • 13.5 Kilograms (kg)
  • Eyepieces
  • 15X view diameter: 13mm
  • Illumination
  • 24V/3V tungsten bulb with green filter, the brightness is adjustable
  • Light Source
  • 24V/3V tungsten bulb, the brightness is adjustable
Product Description

Tool-Maker Microscope

Specifications

Model

SPTM-505R

X.Y Axis Travel

50*50mm

Maxi Working Height

115mm

Maxi Loading Weight

5Kgs

Measuring Head

Origin Mitutoyo electronic measuring head

Resolution of Measuring Head

0.001mm

Machine Head

Monocular (aimer is adjustable)

Angle Dial

Rotary angle: 360degree; Minimum angle reading: 6

Eyepiece (176-116)

15 view diameter: 13mm

Objectives(176-138)

2 working diameter: 67mm

Total Magnification

30

Contour Illumination

24V/3V tungsten bulb with green filter, the brightness is adjustable

Surface Illumination

24V/3V tungsten bulb, the brightness is adjustable

Power Supply

110/220V AC 50/60Hz

Instrument Dimension

210*333*391mm

Machine Weight

13.5Kgs

Auxiliary Objectives

A group of partition board; 1 piece of blue filter

Accuracy

(3+L/50)um

Optional Accessories

1X, 3X, 10X Objective,



Trade Information
  • FOB Port
  • SHANGHAI CHINA
  • Payment Terms
  • Telegraphic Transfer (T/T)
  • Delivery Time
  • 15 Days
  • Main Domestic Market
  • All India
  • Certifications
  • CE
