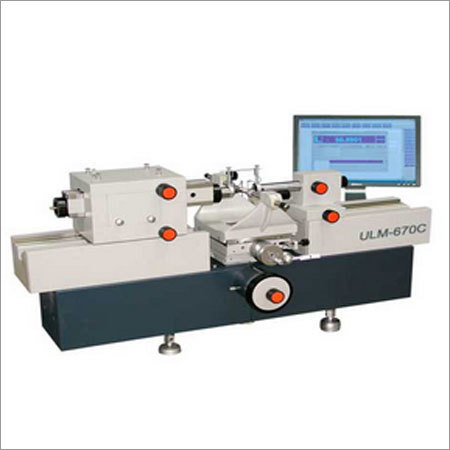

ULM-670C Universal Length Measuring Machine

ULM-670C Universal Length Measuring Machine
ULM-670C Universal Length Measuring Machine
Product Code : ULM-670C
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
Product Description

Universal Length Measuring Machine

Technical Specification :

External dimensions

  • The measurement of the parallel plane for the measured piece, such as: measuring blocks;
  • The measurement of the spherical dome for the measured piece, such as: length bars, steel balls;
  • The measurement of the cylindroid for the measured piece, such as: circular cylinders.

Internal dimensions

  • The measurement of the parallel plane for the measured piece, such as: snap-gauge;
  • The measurement of the aperture, such as: ring-gauges.

Screw thread
The measurement of external and internal effective diameter of threads.

Comparative measurement
The large-or-small movable measuring hooks are used to conduct comparative measurements for internal and external dimensions.

Measuring range (mm):

External size:

  • Absolute measurement: 1-100
  • Comparative measurement: 0-670
Internal size:
  • When using small measuring hook
  • (maximum insert depth 12, maximum wall thickness 50): 10-400
  • When using large measuring hook
  • (maximum insert depth 50, maximum wall thickness 85): 30-370
  • When using electronic measuring hook: 1-60mm
  • When using universal measuring hook: 14-112mm
  • Measurement of internal thread mid-diameter:
  • When using small measuring hook (thread small diameter 13-30mm)
  • When using large measuring hook [thread small diameter 31 ~ (70 wall thickness) X 2
  • Thread distance: 0.5~6 mm
  • Measurement of external thread mid-diameter: maximum 200mm, thread distance 1~6 mm
  • Measuring force (N): 0, 1.5, 2.5
  • Digital resolution: 0.1um

ULM-670H use HEIDENHAIN linear scale and reading card

Accuracy of instrument:
External size direct measurement
ULM-670C/D: (0.5 + L/200) um

ULM-670H: 0.4um
Internal size measurement

  • ULM-670C/D: (1 +L/100) um
  • ULM-670H: 0.8um

Universal worktable:

  • Installment size of worktable: 160X160mm
  • Adjusting range of height: 0 ~ 100
  • X axis travel: 25mm
  • Inclination of workable (enclosuring Y axis ): ±3°
  • Rotary angle of workable: ±4°
  • Loading of worktable: 10kg
