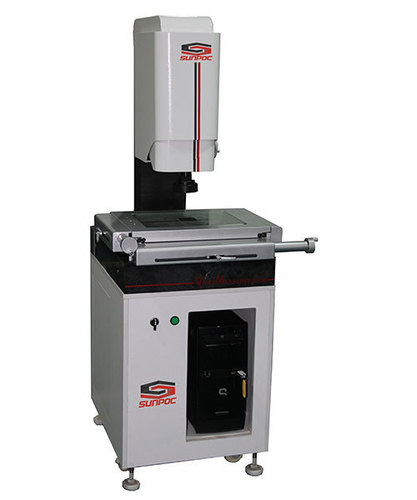

Video Measuring Machine

Video Measuring Machine
Video Measuring Machine
Product Code : SP-VMH-700
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price
  • 12000 USD ($)
Product Description

This Video Measuring Machine is appropriately used for inspecting electronic and electrical components. Our offered machine is widely valued due to unique feature i.e. it can be easily fitted with a data processor that is compatible to auto cad. Further, this is video measuring machine using premium quality input and accompanied with highly accurate linear guide way for enhanced effectiveness. To meet the diverse requirement of clients, offered video measuring machine is available in various other specifications.

Key Features :-

  • Granite machine base and column ensures no distortion
  • Z axis transmission system
  • Step zoom lens working combined with software needs no linear calibration under fixed magnification.
  • Independent development of multifunctional gauge block
  • OVM semi automatic software

Technical Specification :-

Model

SP-VMH-500

SP-VMH-600

SP-VMH-700

Measuring Range (X/Y/Z:mm)

500×400×200

600×600×300

700×600×300

Dimension(mm)

1910×1000×1845

2100×1200×2025

2100×1250×2025

Operation Mode

Manual

Material

High precision granite

CCD

410,000 pixels 3DFAMILY-E color CCD

Lens

Made in China Step-zoom freezing fixture lens

Magnification

Optical magnification: 0.7-4.5X;

Image magnification: 28X-180X

Precision (X/Y)

(3+L/200) μm

Optical Ruler Resolution

1 μm

Repeatability

2 μm

Software

OVM

Applicable Environment

Power:110V~220V±10% 50/60HZ

Temperatur: 20±5℃ Humidity: 45%-75%

Free Maintain Time

One year

Trade Information
  • FOB Port
  • Shanghai
  • Payment Terms
  • Telegraphic Transfer (T/T)
  • Certifications
  • CE
