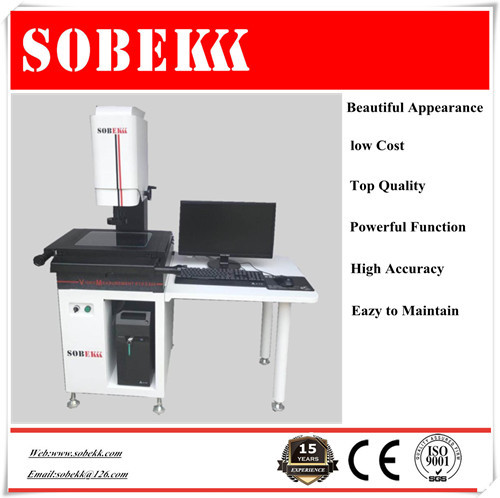

Video Measuring System E200

Video Measuring System E200
Video Measuring System E200
Product Code : E200
Brand Name : SOBEKK
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price
  • 5000 USD ($)
Product Specifications
  • Equipment Materials
  • Cast Iron
  • Capacity
  • 1.5 Cubic Meter (m3)
  • Display Type
  • PC
  • Weight
  • 285 Kilograms (kg)
Product Description

Catering to wide requirements of clients, this E200 Video Measuring Machine is procured from the trusted expert present in market. This is accessible for customers in a wide range of models and specifications to cater to their demands. Highly demanded among the patrons, this array is utilized as non-contact optical measuring instrument. E200 video measuring machine is specifically designed for accurate measurement and high-speed of small to large work pieces.

Key Features :-

  • HIWIN P level linear guideway and precision cross roller guideway for increased accuracy & working life
  • Contains granite base and column ensures machine stability.
  • Supplied with SBK-E multifunctional 2.5D measuring software, automatic edge detection and video height measurement
  • Supplied with removable & dismountable console base
  • High-definition detent zoom lens and high-resolution CCD performs high-definition measurement.
  • Supports different file formats of data output such as Word, Excel, CAD etc.
  • DXF import for quick inspection.

Technical Specifications:

Model

E200

E300

E400

Measuring range(mm)

200x100x200

300x200x200

400x300x200

Dimensions(mm)

750*1300*1500mm

750*1300*1500mm

900*1400*1500mm

Weight(kg)

160

170

250

Max. load(kg)

20

25

25

  • Accuracy of X-Y axis ( ¼m): 3+L/200
  • Repeatability ¼ mm ¼ 0.003
  • Measuring mode video measurement
  • Linear encoder: exposed glass linear encoder with resolution of 1.0¼m
  • Camera type: SBK-HC536 1/3 inches 600 lines industrial color camera
  • Guideway: Z axis “HIWIN P level linear guide way
  • X-Y axis ¼ cross roller guide way
  • Optics: 6.5:1 continual zoom detent body tube
  • Magnification: optics zoom ratio: 0.7-4.5X; image zoom ratio: 24-158X
  • Software: SBK-E 2D measuring software
  • Profile illumination: LED cold lighting with 256 level programmable brightness adjustment
  • Surface illumination: 48 LEDs cold lighting with 256 level programmable brightness adjustment
  • Control system: SBK-3000 data controller USB interface software controlled lighting
  • Drive type: Manual
Trade Information
  • FOB Port
  • Shanghai China
  • Payment Terms
  • Telegraphic Transfer (T/T)
  • Supply Ability
  • 500 Per Year
  • Delivery Time
  • 7-15 Days
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Wooden Case (fumigation-free)
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
  • Certifications
  • CE
